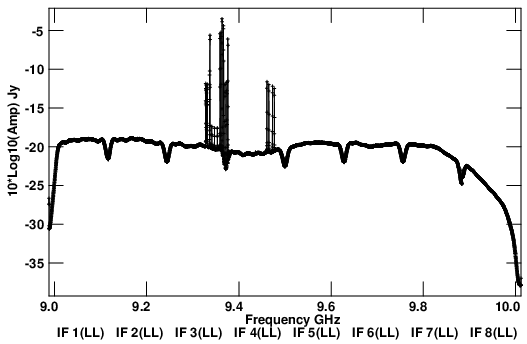

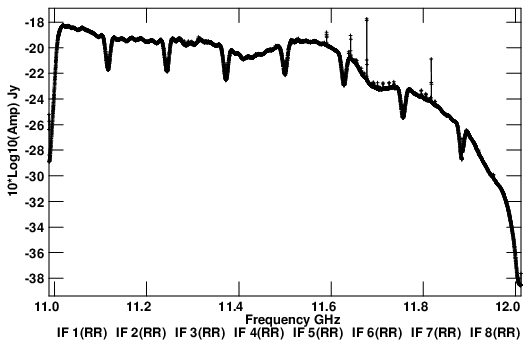

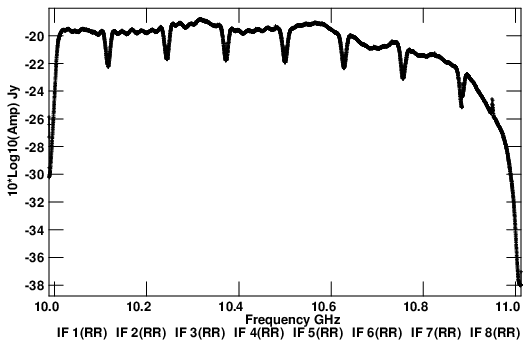

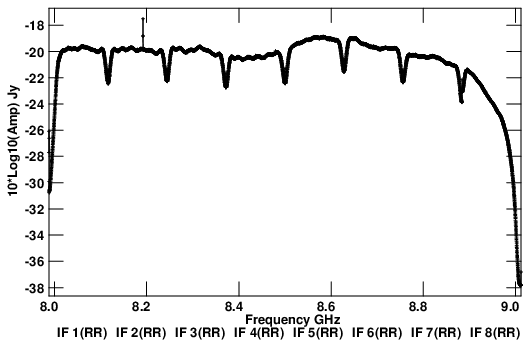

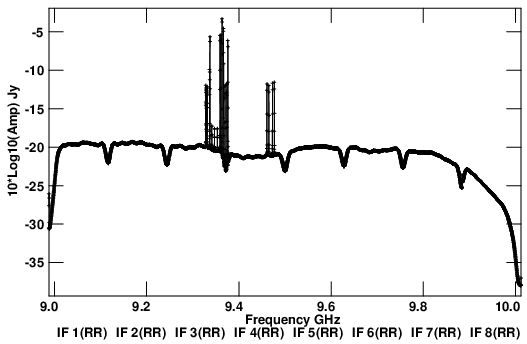

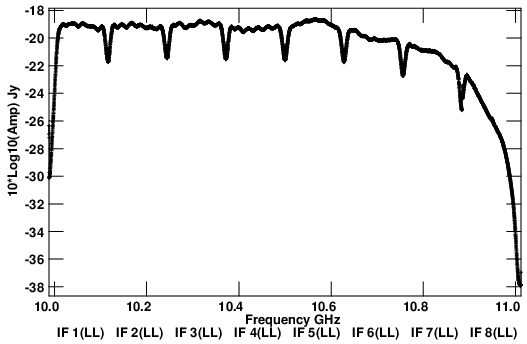

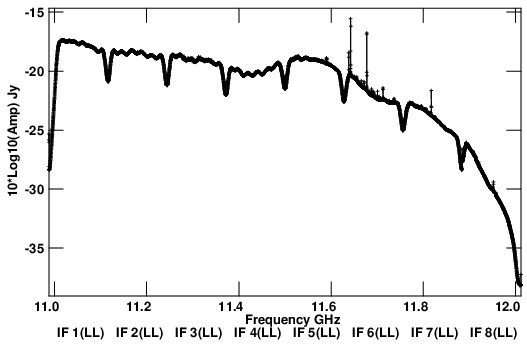

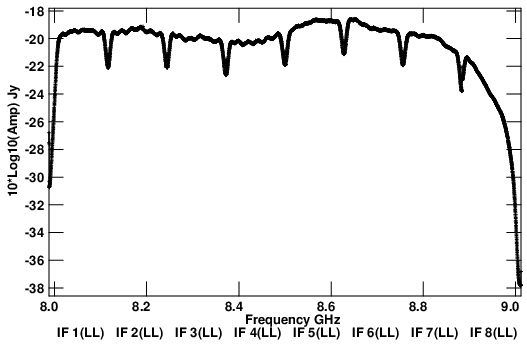

X-Band Spectra (8-12 GHz) 2025 January A-config

A listing of the various RFI in this frequency band is available here.

Also available are spectra per 128 MHz subband

CSV files for RR and LL - 10/10

CSV files for RR and LL - 11/21

CSV files for RR and LL - 11/25

CSV files for RR and LL - 12/02

CSV files for RR and LL - 12/12

CSV files for RR and LL - 01/06

CSV files for RR and LL - 01/21

CSV files for RR and LL - 02/10

CSV files for RR and LL - 02/24
